Implementing RAG with Spring AI

pushkarnk · August 6, 2026, 4:42pm

Enterprise applications, including the legacy ones, are incorporating AI-driven components and LLM-based workflows. Java is a major player in the enterprise world and the Java ecosystem has been heads-down developing solutions to ease AI integration into Java applications, reducing the need to interface with AI-rich language ecosystems such as Python’s.

The Spring AI framework is one such effort. Commissioned with a goal to address the fundamental challenge of AI integration: connecting data models and APIs to large-language models, Spring AI has achieved significant strides since its first product-ready release in August 2025. The framework now supports all major AI-model providers, and its API covers most of the LLM-related functionality.

The project hosts an exhaustive and well-structured documentation. In addition to that, we hope to create a more hands-on and consumable form of Spring AI documentation for Ubuntu users, focused on tutorials and how-to guides. In this post, I want to demonstrate the ease of implementing Retrieval Augmented Generation using Spring AI. Whilst the primary intent of this post is present it as a documentation example, I am sure it also demonstrates the power of Spring AI.

1. Implementing Retrieval Augmented Generation with Spring AI

Every large language model is trained on a corpus of data. There may be prompts that relate to the knowledge of a topic which was not sufficiently covered by the corpus. This often causes hallucinations in models, generating factually incorrect responses.

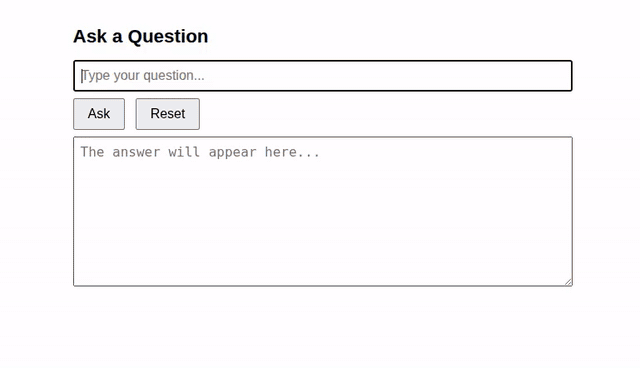

simple-client

Retrieval Augmented Generation (RAG) lets the user ingest additional information into the model context. The hence expanded model context is likely to reduce hallucinations and produce better responses.

This tutorial demonstrates how Spring AI libraries can be used to implement Retrieval Augmented Generation. It uses the Qwen 2.5 model installed as an inference snap. RAG also needs an embedding model and a vector database for data ingestion. The tutorial uses ollama’s nomic-embed-text model and the OpenSearch vector database, respectively.

2. Installing prerequisites

Setting up the environment for this tutorial involves installation of the following:

The devpack-for-spring snap and the spring-ai content snap.
The qwen-vl inference snap.
The ollama snap.
The opensource charm.

2.1 devpack-for-spring

Install devpack-for-spring:

sudo snap install devpack-for-spring --classic

List the available content snaps:

devpack-for-spring snap list

This tutorial will use Spring Boot 3.5.x and hence Spring 1.1.y. So, install content-for-spring-ai-11:

devpack-for-spring snap install content-for-spring-ai-11

2.2 qwen-vl inference snap

Install the qwen-vl snap from the beta channel:

sudo snap install qwen-vl --beta

Run the status command to ensure it is up and running:

qwen-vl status

2.3 ollama

Install the ollama snap:

sudo snap install ollama

The tutorial uses nomic-embed-text as a text-embedding model. So, lets pull and launch it:

ollama pull nomic-embed-text

2.4 Deploy the `opensource` charm

OpenSearch is a production-grade vector database, and is deployed as a Charm. Though simpler alternatives may appear to better suit a tutorial, none of them are charmed. Juju makes it super-easy to set up TLS for OpenSearch, and get the credentials to be used by the Spring AI application.

2.4.1 Juju installation

Install juju, if you don’t already have it:

sudo snap install juju

2.4.2 Deploy opensearch

OpenSearch needs vm.swappiness set to 0:

sudo sysctl -w vm.swappiness=0

Note: this is a temporary setting. A restart would reset its value to the default.

Run juju bootstrap if needed:

juju bootstrap localhost

Add a juju model.

juju add-model opensearch-model

Deploy charms for opensearch and self-signed-certificates and integrate them:

juju deploy opensearch
juju deploy self-signed-certificates
juju integrate opensearch self-signed-certificates

This should launch a Juju application named OpenSearch and set up TLS certificates to access it. Please give process this a few minutes to complete. Issuing juju status can help you track the state.

Note:
Eventually, juju status will show opensearch blocked on:
1 or more 'replica' shards are not assigned, please scale your application up.
This is addressed in section 2.4.4.

2.4.3 Get opensearch credentials

We use the data-integrator charm for this purpose.

juju deploy data-integrator --config index-name=demo-index --config extra-user-roles=admin
juju integrate data-integrator opensearch
juju run data-integrator/0 get-credentials

From the output of the get-credentials command, note the following:

The tls-ca field holds two certificates. Copy them carefully to a file named $HOME/os.pem, ensuring that the leading whitespaces from the output are removed.
The username, password and endpoint fields.

Now, set the following environment variables as per the values noted above (the values used below are samples):

export OPENSEARCH_CA_CERT=$HOME/os.pem
export OPENSEARCH_USERNAME=opensearch-client_5
export OPENSEARCH_PASSWORD=anPgGF5uGDbmFmYqQ6mARhZ8ilOTTj58
export OPENSEARCH_URI=https://10.29.231.224:9200

2.4.4 Unblocking opensearch

As noted before, opensearch may be blocked with the message:

1 or more 'replica' shards are not assigned, please scale your application up.

We do not want to scale up opensearch for this simple use-case. So, lets set the replicas to 0.

  curl --cacert $HOME/os.pem -u "$OPENSEARCH_USERNAME:$OPENSEARCH_PASSWORD" \
        -X PUT "$OPENSEARCH_URI/demo-index/_settings" \
        -H 'Content-Type: application/json' -d '{ "index": { "number_of_replicas": 0 } }'

This must return {"acknowledged": true}, and opensearch should unblock eventually.

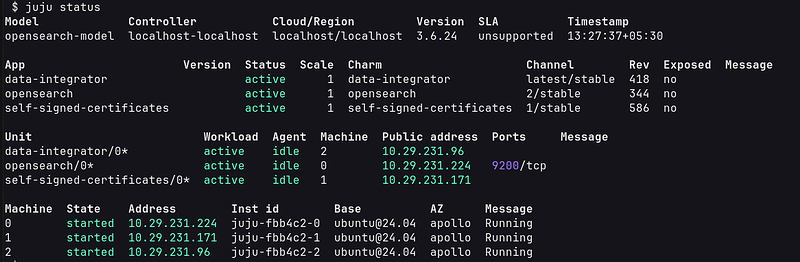

Before proceeding to the next step, ensure the juju status output is all green.

3. Developing a basic Spring AI RAG application

3.1 Bootstrap a Spring Boot project

Using devpack-for-spring, initialize a project that uses Spring Boot 3.5.X. Include the following dependencies:

web - for creating a Spring web application
spring-ai-openai - for interaction with the qwen model’s OpenAI interface
spring-ai-ollama - for interaction with the nomic-embed-text embedding model from ollama
spring-ai-vectordb-opensearch - for interaction with opensearch

devpack-for-spring boot start \
    --path $PWD/rag-chat-client \
    --project gradle-project \
    --language java \
    --boot-version 3.5.16 \
    --version 0.0.1 \
    --group demo.chatclient.rag \
    --artifact demo \
    --name rag-chat-client \
    --description "An LLM chat client with Retrieval Augmented Generation" \
    --package-name demo.chatclient.rag \
    --dependencies web,spring-ai-openai,spring-ai-ollama,spring-ai-vectordb-opensearch \
    --packaging jar \
    --java-version 21

3.2 Define the basic abstractions

Create Java records representing questions (prompts), answers (responses) and ingested URLs.

src/main/java/demo/chatclient/rag/Question.java

package demo.chatclient.rag;

public record Question(String question) {}

src/main/java/demo/chatclient/rag/Answer.java

package demo.chatclient.rag;

public record Answer(String answer) {}

src/main/java/demo/chatclient/rag/IngestRequest.java

package demo.chatclient.rag;

import java.util.List;

public record IngestRequest(List<String> urls) {}

Also, create an interface for a chat-client.

src/main/java/demo/chatclient/rag/DemoChatClient.java

package demo.chatclient.rag;

public interface DemoChatClient {
    Answer askQuestion(Question question);
}

3.3 Define the Service classes

Create Spring Boot Services for the chat client and the ingestion. These classes hold the core logic to handle prompts and URL ingestion requests.

src/main/java/demo/chatclient/rag/IngestService.java

package demo.chatclient.rag;

import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.ai.document.Document;
import org.springframework.ai.vectorstore.VectorStore;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.stereotype.Service;
import org.springframework.web.client.RestClient;

import java.net.URI;
import java.util.ArrayList;
import java.util.List;
import java.util.Map;

@Service
public class IngestService {

    private static final Logger log = LoggerFactory.getLogger(IngestService.class);

    private final VectorStore vectorStore;
    private final int batchSize;
    private final RestClient httpClient;

    public IngestService(VectorStore vectorStore,
                         @Value("${app.rag.ingest.batch-size:16}") int batchSize) {
        this.vectorStore = vectorStore;
        this.batchSize = batchSize;
        this.httpClient = RestClient.builder()
                .defaultHeader("User-Agent", "chat-client/rag")
                .build();
    }

    // fetch text from the urls, embed and index it
    public IngestResult ingest(List<String> urls) {
        List<Document> documents = new ArrayList<>();
        int skipped = 0;
        for (String url : urls) {
            try {
                String content = fetch(url);
                if (content.isBlank()) {
                    skipped++;
                    continue;
                }
                documents.add(toDocument(url, content));
            } catch (Exception e) {
                log.warn("Skipping {}: {}", url, e.getMessage());
                skipped++;
            }
        }

        log.info("Embedding and indexing {} documents (skipped {})...", documents.size(), skipped);
        for (int from = 0; from < documents.size(); from += batchSize) {
            int to = Math.min(from + batchSize, documents.size());
            vectorStore.add(documents.subList(from, to));
            log.info("  indexed {}/{}", to, documents.size());
        }

        return new IngestResult(urls.size(), documents.size(), skipped);
    }

    // get text from the url
    private String fetch(String url) {
        return httpClient.get()
                .uri(URI.create(url))
                .retrieve()
                .body(String.class);
    }

    // strip HTML tags, keep the raw URL as metadata
    private static Document toDocument(String url, String body) {
        String text = looksLikeHtml(body) ? stripHtml(body) : body;
        Map<String, Object> metadata = Map.of("url", url);
        return new Document(text, metadata);
    }

    private static boolean looksLikeHtml(String body) {
        String lower = body.length() > 512 ? body.substring(0, 512) : body;
        return lower.toLowerCase().contains("<html") || lower.toLowerCase().contains("<body");
    }

    // drop tags and whitespaces
    private static String stripHtml(String html) {
        return html.replaceAll("(?s)<script.*?</script>", " ")
                .replaceAll("(?s)<style.*?</style>", " ")
                .replaceAll("(?s)<[^>]+>", " ")
                .replaceAll("&nbsp;", " ")
                .replaceAll("\\s+", " ")
                .trim();
    }

    public record IngestResult(int submitted, int indexed, int skipped) {}
}

The ingest() method is the entry point into IngestService. It gets the content of each URL, massages it by removing HTML tags and whitespaces, and passes it to VectorStore.add(). This method takes the text through the ollama/nomic-embed-text embedding model and stores the embeddings in the opensearch vector database. Though the connections to the embedding model and opensearch are not seen in the code, the application config in application.properties sets up this internal wiring in Spring AI.

src/main/java/demo/chatclient/rag/DemoChatService.java

package demo.chatclient.rag;

import org.springframework.ai.chat.client.ChatClient;
import org.springframework.ai.document.Document;
import org.springframework.ai.vectorstore.SearchRequest;
import org.springframework.ai.vectorstore.VectorStore;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.stereotype.Service;

import java.util.List;
import java.util.stream.Collectors;

@Service
public class DemoChatService implements DemoChatClient {

    private static final String SYSTEM = """
            You answer the user's question using ONLY the context provided.
            The context is content fetched from web pages. If the context contains
            nothing relevant, say so plainly instead of guessing. Be concise.""";

    private final ChatClient chatClient;
    private final VectorStore vectorStore;
    private final int topK;

    public DemoChatService(ChatClient.Builder chatClientBuilder,
                           VectorStore vectorStore,
                           @Value("${app.rag.top-k:5}") int topK) {
        this.chatClient = chatClientBuilder.defaultSystem(SYSTEM).build();
        this.vectorStore = vectorStore;
        this.topK = topK;
    }

    @SuppressWarnings("null")
    @Override
    public Answer askQuestion(Question question) {
        List<Document> hits = retrieve(question.question(), topK);
        String context = hits.stream()
                .map(Document::getText)
                .collect(Collectors.joining("\n\n"));

        String response = chatClient.prompt()
            .user(u -> u.text("""
                    Context:

                    {context}

                    Question: {question}""")
                    .param("context", context)
                    .param("question", question.question()))
            .call()
            .content();
        return new Answer(response);
    }

    private List<Document> retrieve(String question, int k) {
        return vectorStore.similaritySearch(
                SearchRequest.builder().query(question).topK(k).build());
    }
}

Note the default system prompt defined in static String SYSTEM. This string gets applied to the prompt by default. The askQuestion() method is the entrypoint into the DemoChatService logic. This method, based on the question text, retrieves the top K (K Nearest Neighbors) matching documents from the vector database. The text in these entries is then passed to the Qwen model, along with the question.

3.4 Define the Controller classes

The Controllers define the REST endpoints and invoke Services defined previously.

src/main/java/demo/chatclient/rag/IngestController.java

package demo.chatclient.rag;

import org.springframework.web.bind.annotation.PostMapping;
import org.springframework.web.bind.annotation.RequestBody;
import org.springframework.web.bind.annotation.RestController;

@RestController
public class IngestController {

    private final IngestService ingestService;

    public IngestController(IngestService ingestService) {
        this.ingestService = ingestService;
    }

    @PostMapping(path = "/ingest", produces = "application/json")
    public IngestService.IngestResult ingest(@RequestBody IngestRequest request) {
        return ingestService.ingest(request.urls());
    }
}

src/main/java/demo/chatclient/rag/DemoChatController.java

package demo.chatclient.rag;

import org.springframework.web.bind.annotation.PostMapping;
import org.springframework.web.bind.annotation.RequestBody;
import org.springframework.web.bind.annotation.RestController;

@RestController
public class DemoChatController {

    private final DemoChatClient chatClient;

    public DemoChatController(DemoChatClient chatClient) {
        this.chatClient = chatClient;
    }

    @PostMapping(path = "/ask", produces = "application/json")
    public Answer askQuestion(@RequestBody Question question) {
        return chatClient.askQuestion(question);
    }
}

3.5 Define Spring AI configuration through properties files

Given how much functionality this small application is able to provide, it is easy to guess that much of the ground-work is done by configuration-based wiring in Spring Boot and Spring AI. The two properties files below are hence a significant part of the project.

src/main/resources/application.properties

spring.application.name=rag-chat-client
server.port=8080

# Spring AI config
spring.ai.model.chat=openai
spring.ai.model.embedding=ollama

# OpenAI config
# Values taken from running `qwen-vl status` on the command-line.
spring.ai.openai.base-url=http://localhost:8326/v1
spring.ai.openai.api-key=ignored
spring.ai.openai.chat.options.model=qwen2.5-vl-7b-instruct
spring.ai.openai.chat.options.temperature=0.1
spring.ai.openai.chat.completions-path=/chat/completions

# Ollama config
spring.ai.ollama.base-url=http://localhost:11434
spring.ai.ollama.embedding.options.model=nomic-embed-text
spring.ai.ollama.init.timeout=5m

# Opensearch config
spring.ai.vectorstore.opensearch.aws.enabled=false
spring.ai.vectorstore.opensearch.uris=${OPENSEARCH_URI}
spring.ai.vectorstore.opensearch.username=${OPENSEARCH_USERNAME}
spring.ai.vectorstore.opensearch.password=${OPENSEARCH_PASSWORD}
spring.ai.vectorstore.opensearch.index-name=${OPENSEARCH_INDEX:url-docs}
spring.ai.vectorstore.opensearch.initialize-schema=true

# RAG config
app.rag.top-k=5
app.rag.ingest.batch-size=16

Notes:

The OpenAI base URL is reported by the qwen-vl status command.

The model id may be inferred using this command:
curl http://localhost:8326/v3/models 2>/dev/null | jq | grep "id"

The Ollama base URL is a commonly known default value.

For Opensearch, you may define your own index name using OPENSEARCH_INDEX. The tutorial uses url-docs as default.

We need this additional configuration to enable the application to connect to a TLS-secured OpenSource instance. Please note that this falls under a different profile named tls, which needs to be activated during execution.

src/main/resources/application-tls.properties

# OpenSearch TLS profile, needed when talking to a TLS-secured OpenSearch
# Activate with SPRING_PROFILES_ACTIVE=tls
spring.ssl.bundle.pem.opensearch.truststore.certificate=file:${OPENSEARCH_CA_CERT}
spring.ai.vectorstore.opensearch.ssl-bundle=opensearch

3.6 HTML for the front-end

Use the following HTML for the front-end web page:

src/main/resources/static/index.html

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <title>AI Chat</title>
    <style>
        body { font-family: sans-serif; max-width: 700px; margin: 40px auto; padding: 0 16px; }
        h1 { font-size: 1.4rem; }
        h2 { font-size: 1.1rem; margin-top: 24px; }
        input, textarea { width: 100%; box-sizing: border-box; padding: 8px; font-size: 1rem; }
        textarea { resize: vertical; }
        textarea#answer { height: 180px; margin-top: 8px; }
        textarea#urls { height: 120px; margin-top: 8px; }
        .buttons { margin-top: 8px; }
        button { padding: 8px 16px; font-size: 1rem; margin-right: 8px; cursor: pointer; }
        button:disabled { cursor: default; opacity: 0.6; }
        .hint { color: #666; font-size: 0.85rem; margin-top: 4px; }
        .result { font-size: 0.85rem; color: #444; margin-top: 8px; white-space: pre-wrap; }
        .ok { color: #1a7d1a; }
        .err { color: #b00020; }
    </style>
</head>
<body>
    <h1>AI Chat</h1>

    <h2>Ingest URLs</h2>
    <textarea id="urls" placeholder="One URL per line, e.g.&#10;https://example.com/page-a&#10;https://example.com/page-b"></textarea>
    <div class="hint">Each URL is fetched, stripped of HTML, embedded with nomic-embed-text, and stored in OpenSearch.</div>
    <div class="buttons">
        <button id="ingestBtn">Ingest</button>
    </div>
    <div id="ingestResult" class="result"></div>

    <h2>Ask a Question</h2>
    <input id="question" type="text" placeholder="Type your question..." />
    <div class="buttons">
        <button id="askBtn">Ask</button>
        <button id="resetBtn">Reset</button>
    </div>
    <textarea id="answer" readonly placeholder="The answer will appear here..."></textarea>

    <script>
        const questionEl = document.getElementById('question');
        const answerEl = document.getElementById('answer');
        const askBtn = document.getElementById('askBtn');
        const resetBtn = document.getElementById('resetBtn');
        const urlsEl = document.getElementById('urls');
        const ingestBtn = document.getElementById('ingestBtn');
        const ingestResultEl = document.getElementById('ingestResult');

        function parseUrls() {
            return urlsEl.value
                .split('\n')
                .map(s => s.trim())
                .filter(s => s.length > 0);
        }

        async function ingest() {
            const urls = parseUrls();
            if (urls.length === 0) {
                ingestResultEl.textContent = 'Please enter at least one URL.';
                ingestResultEl.className = 'result err';
                return;
            }
            ingestBtn.disabled = true;
            ingestResultEl.textContent = 'Ingesting ' + urls.length + ' URL(s)...';
            ingestResultEl.className = 'result';
            try {
                const res = await fetch('/ingest', {
                    method: 'POST',
                    headers: { 'Content-Type': 'application/json' },
                    body: JSON.stringify({ urls })
                });
                if (!res.ok) {
                    throw new Error('Request failed: ' + res.status);
                }
                const data = await res.json();
                ingestResultEl.textContent =
                    'Submitted: ' + data.submitted +
                    ' | Indexed: ' + data.indexed +
                    ' | Skipped: ' + data.skipped;
                ingestResultEl.className = 'result ok';
            } catch (err) {
                ingestResultEl.textContent = 'Error: ' + err.message;
                ingestResultEl.className = 'result err';
            } finally {
                ingestBtn.disabled = false;
            }
        }

        async function ask() {
            const question = questionEl.value.trim();
            if (!question) {
                answerEl.value = 'Please enter a question.';
                return;
            }
            askBtn.disabled = true;
            answerEl.value = 'Thinking...';
            try {
                const res = await fetch('/ask', {
                    method: 'POST',
                    headers: { 'Content-Type': 'application/json' },
                    body: JSON.stringify({ question })
                });
                if (!res.ok) {
                    throw new Error('Request failed: ' + res.status);
                }
                const data = await res.json();
                answerEl.value = data.answer;
            } catch (err) {
                answerEl.value = 'Error: ' + err.message;
            } finally {
                askBtn.disabled = false;
            }
        }

        function reset() {
            questionEl.value = '';
            answerEl.value = '';
            questionEl.focus();
        }

        ingestBtn.addEventListener('click', ingest);
        askBtn.addEventListener('click', ask);
        resetBtn.addEventListener('click', reset);
        questionEl.addEventListener('keydown', (e) => {
            if (e.key === 'Enter') ask();
        });
    </script>
</body>
</html>

4. Running the RAG chat client

# Install openjdk
sudo apt update && sudo apt install openjdk-17-jdk

# Set JAVA_HOME
export JAVA_HOME=/usr/lib/jvm/java-17-openjdk-amd64

# Run the application
SPRING_PROFILES_ACTIVE=tls ./gradlew bootRun

The application should now be accessible in a browser at https://localhost:8080.

As mentioned before, opensearch might get blocked again with this message:

1 or more 'replica' shards are not assigned, please scale your application up.

Please note that the index used now is url-docs. Run this command:

  curl --cacert $HOME/os.pem -u "$OPENSEARCH_USERNAME:$OPENSEARCH_PASSWORD" \
      -X PUT "$OPENSEARCH_URI/url-docs/_settings"  \
      -H 'Content-Type: application/json' -d '{ "index": { "number_of_replicas": 0 } }'

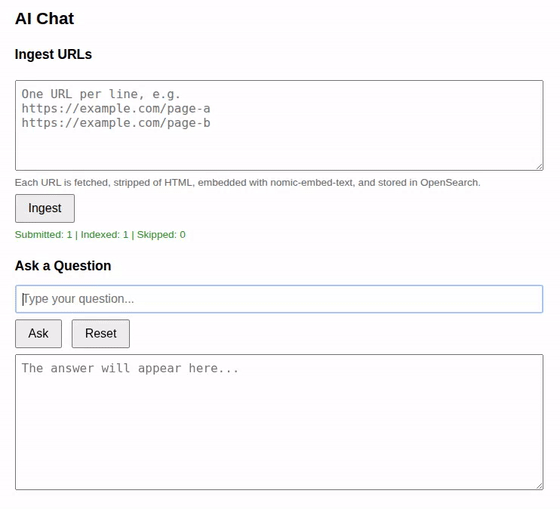

Here is the screen-capture of a sample run:
rag-chat

Conclusion

Though the tutorial appears involved, a significant chunk of the time might be spent in setting up the prerequisites, especially opensearch which is a production-grade vector database. The Spring AI code and wiring is quite concise and easy to comprehend. You may access the full code of this project here.
