Ubuntu Version:
Ubuntu 24.04.3 LTS
Kernel Version:
6.14.0-37-generic
Problem Description:
I have recently installed Ubuntu. However, it is unable to detect my laptop’s built-in microphone. Microphone works perfectly fine on Windows 11 (which I am using via dual boot).
Relevant System Information:
- Device name: MSI Vector A18 HX A9WHG with AMD Ryzen 9 CPU and Nvidia RTX 5070 GPU (https://www.msi.com/Laptop/Vector-A18-HX-A9WX/Specification)
- Microphone: its name is AMD Array Device, and its using Realtek(R) audio drivers on Windows 11. Not sure of the exact model.

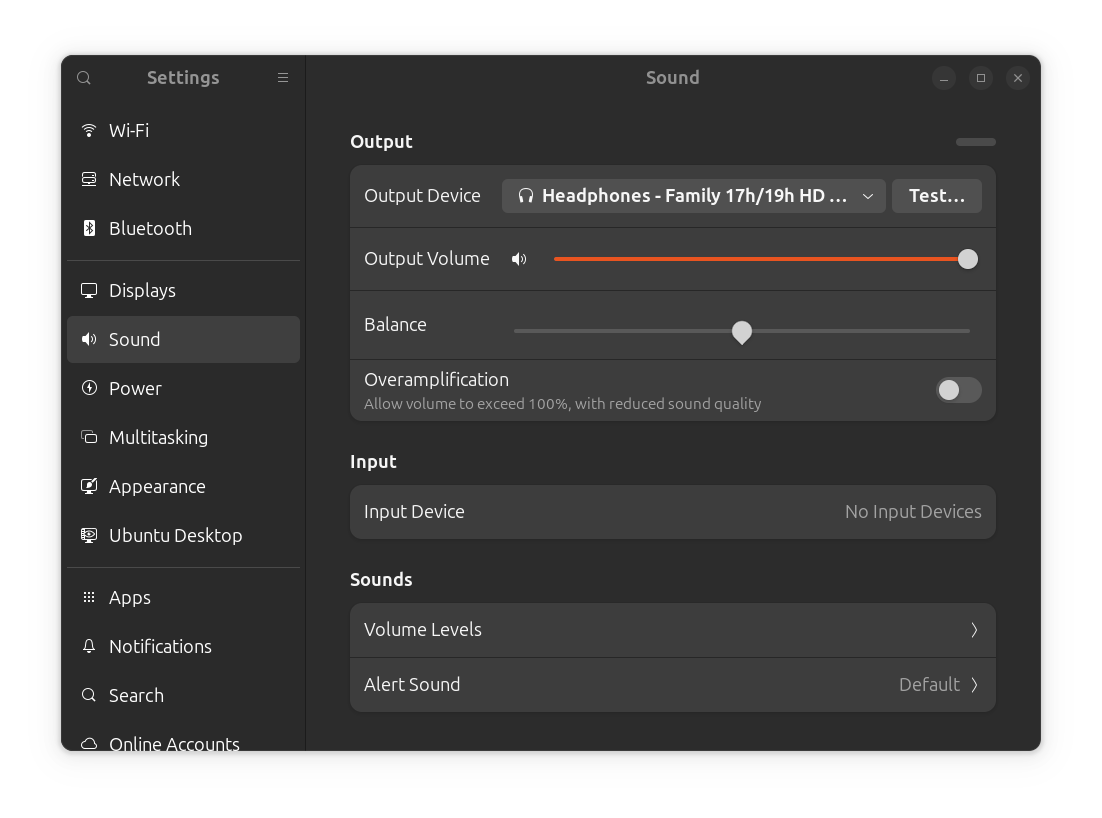

Screenshots or Error Messages:
The output of arecord -l is:
**** List of CAPTURE Hardware Devices ****
card 2: Generic_1 [HD-Audio Generic], device 0: ALC274 Analog [ALC274 Analog]
Subdevices: 1/1
Subdevice #0: subdevice #0
pactl is not installed, pipewire is running, arecord records only some kind of low static noise though I am speaking. alsamixer -c 2 is showing the following:
cat /proc/asound/card2/codec#0
Codec: Realtek ALC274
Address: 0
AFG Function Id: 0x1 (unsol 1)
Vendor Id: 0x10ec0274
Subsystem Id: 0x14621482
Revision Id: 0x100004
No Modem Function Group found
Default PCM:
rates [0x560]: 44100 48000 96000 192000
bits [0xe]: 16 20 24
formats [0x1]: PCM
Default Amp-In caps: N/A
Default Amp-Out caps: N/A
State of AFG node 0x01:
Power states: D0 D1 D2 D3 D3cold CLKSTOP EPSS
Power: setting=D0, actual=D0
GPIO: io=4, o=0, i=0, unsolicited=1, wake=0
IO[0]: enable=0, dir=0, wake=0, sticky=0, data=0, unsol=0
IO[1]: enable=0, dir=0, wake=0, sticky=0, data=0, unsol=0
IO[2]: enable=0, dir=0, wake=0, sticky=0, data=0, unsol=0
IO[3]: enable=0, dir=0, wake=0, sticky=0, data=0, unsol=0
Node 0x02 [Audio Output] wcaps 0x41d: Stereo Amp-Out
Control: name="Headphone Playback Volume", index=0, device=0
ControlAmp: chs=3, dir=Out, idx=0, ofs=0
Device: name="ALC274 Analog", type="Audio", device=0
Amp-Out caps: ofs=0x57, nsteps=0x57, stepsize=0x02, mute=0
Amp-Out vals: [0x57 0x57]
Converter: stream=5, channel=0
PCM:
rates [0x560]: 44100 48000 96000 192000
bits [0xe]: 16 20 24
formats [0x1]: PCM
Power states: D0 D1 D2 D3 EPSS
Power: setting=D0, actual=D0
Node 0x03 [Audio Output] wcaps 0x41d: Stereo Amp-Out
Control: name="Speaker Playback Volume", index=0, device=0
ControlAmp: chs=3, dir=Out, idx=0, ofs=0
Amp-Out caps: ofs=0x57, nsteps=0x57, stepsize=0x02, mute=0
Amp-Out vals: [0x33 0x33]
Converter: stream=5, channel=0
PCM:
rates [0x560]: 44100 48000 96000 192000
bits [0xe]: 16 20 24
formats [0x1]: PCM
Power states: D0 D1 D2 D3 EPSS
Power: setting=D0, actual=D0
Node 0x04 [Vendor Defined Widget] wcaps 0xf00000: Mono
Node 0x05 [Vendor Defined Widget] wcaps 0xf00000: Mono
Node 0x06 [Audio Output] wcaps 0x411: Stereo
Converter: stream=0, channel=0
PCM:
rates [0x40]: 48000
bits [0xe]: 16 20 24
formats [0x1]: PCM
Power states: D0 D1 D2 D3 EPSS
Power: setting=D0, actual=D0
Node 0x07 [Audio Input] wcaps 0x10051b: Stereo Amp-In
Amp-In caps: ofs=0x17, nsteps=0x3f, stepsize=0x02, mute=1
Amp-In vals: [0x97 0x97]
Converter: stream=0, channel=0
SDI-Select: 0
PCM:
rates [0x560]: 44100 48000 96000 192000
bits [0xe]: 16 20 24
formats [0x1]: PCM
Power states: D0 D1 D2 D3 EPSS
Power: setting=D0, actual=D0
Connection: 1
0x24
Node 0x08 [Audio Input] wcaps 0x10051b: Stereo Amp-In
Control: name="Capture Volume", index=0, device=0
ControlAmp: chs=3, dir=In, idx=0, ofs=0
Control: name="Capture Switch", index=0, device=0
ControlAmp: chs=3, dir=In, idx=0, ofs=0
Device: name="ALC274 Analog", type="Audio", device=0
Amp-In caps: ofs=0x17, nsteps=0x3f, stepsize=0x02, mute=1
Amp-In vals: [0x27 0x27]
Converter: stream=1, channel=0
SDI-Select: 0
PCM:
rates [0x560]: 44100 48000 96000 192000
bits [0xe]: 16 20 24
formats [0x1]: PCM
Power states: D0 D1 D2 D3 EPSS
Power: setting=D0, actual=D0
Connection: 1
0x23
Node 0x09 [Audio Input] wcaps 0x10051b: Stereo Amp-In
Amp-In caps: ofs=0x17, nsteps=0x3f, stepsize=0x02, mute=1
Amp-In vals: [0x97 0x97]
Converter: stream=0, channel=0
SDI-Select: 0
PCM:
rates [0x560]: 44100 48000 96000 192000
bits [0xe]: 16 20 24
formats [0x1]: PCM
Power states: D0 D1 D2 D3 EPSS
Power: setting=D0, actual=D0
Connection: 1
0x22
Node 0x0a [Audio Input] wcaps 0x100711: Stereo Digital
Converter: stream=0, channel=0
SDI-Select: 0
Digital:
Digital category: 0x0
IEC Coding Type: 0x0
PCM:
rates [0x560]: 44100 48000 96000 192000
bits [0xe]: 16 20 24
formats [0x1]: PCM
Power states: D0 D1 D2 D3 EPSS
Power: setting=D0, actual=D0
Connection: 1
0x1f
Node 0x0b [Vendor Defined Widget] wcaps 0xf00000: Mono
Node 0x0c [Vendor Defined Widget] wcaps 0xf00000: Mono
Node 0x0d [Vendor Defined Widget] wcaps 0xf00000: Mono
Node 0x0e [Vendor Defined Widget] wcaps 0xf00000: Mono
Node 0x0f [Vendor Defined Widget] wcaps 0xf00000: Mono
Node 0x10 [Vendor Defined Widget] wcaps 0xf00000: Mono
Node 0x11 [Vendor Defined Widget] wcaps 0xf00000: Mono
Node 0x12 [Pin Complex] wcaps 0x40040b: Stereo Amp-In
Amp-In caps: ofs=0x00, nsteps=0x03, stepsize=0x27, mute=0
Amp-In vals: [0x00 0x00]
Pincap 0x00000020: IN
Pin Default 0x40000000: [N/A] Line Out at Ext N/A
Conn = Unknown, Color = Unknown
DefAssociation = 0x0, Sequence = 0x0
Pin-ctls: 0x00:
Power states: D0 D1 D2 D3 EPSS
Power: setting=D0, actual=D0
Node 0x13 [Pin Complex] wcaps 0x40040b: Stereo Amp-In
Amp-In caps: ofs=0x00, nsteps=0x03, stepsize=0x27, mute=0
Amp-In vals: [0x00 0x00]
Pincap 0x00000020: IN
Pin Default 0x411111f0: [N/A] Speaker at Ext Rear
Conn = 1/8, Color = Black
DefAssociation = 0xf, Sequence = 0x0
Misc = NO_PRESENCE
Pin-ctls: 0x00:
Power states: D0 D1 D2 D3 EPSS
Power: setting=D0, actual=D0
Node 0x14 [Pin Complex] wcaps 0x40058d: Stereo Amp-Out
Amp-Out caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1
Amp-Out vals: [0x80 0x80]
Pincap 0x00010010: OUT EAPD
EAPD 0x2: EAPD
Pin Default 0x411111f0: [N/A] Speaker at Ext Rear
Conn = 1/8, Color = Black
DefAssociation = 0xf, Sequence = 0x0
Misc = NO_PRESENCE
Pin-ctls: 0x00:
Unsolicited: tag=00, enabled=0
Power states: D0 D1 D2 D3 EPSS
Power: setting=D0, actual=D0
Connection: 1
0x02
Node 0x15 [Pin Complex] wcaps 0x40058d: Stereo Amp-Out
Amp-Out caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1
Amp-Out vals: [0x80 0x80]
Pincap 0x0001001c: OUT HP EAPD Detect
EAPD 0x2: EAPD
Pin Default 0x411111f0: [N/A] Speaker at Ext Rear
Conn = 1/8, Color = Black
DefAssociation = 0xf, Sequence = 0x0
Misc = NO_PRESENCE
Pin-ctls: 0x00:
Unsolicited: tag=00, enabled=0
Power states: D0 D1 D2 D3 EPSS
Power: setting=D0, actual=D0
Connection: 3
0x02* 0x03 0x06
Node 0x16 [Pin Complex] wcaps 0x40058d: Stereo Amp-Out
Amp-Out caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1
Amp-Out vals: [0x80 0x80]
Pincap 0x00010014: OUT EAPD Detect
EAPD 0x2: EAPD
Pin Default 0x411111f0: [N/A] Speaker at Ext Rear
Conn = 1/8, Color = Black
DefAssociation = 0xf, Sequence = 0x0
Misc = NO_PRESENCE
Pin-ctls: 0x00:
Unsolicited: tag=00, enabled=0
Power states: D0 D1 D2 D3 EPSS
Power: setting=D0, actual=D0
Connection: 2
0x02* 0x03
Node 0x17 [Pin Complex] wcaps 0x40058d: Stereo Amp-Out
Control: name="Speaker Playback Switch", index=0, device=0
ControlAmp: chs=3, dir=Out, idx=0, ofs=0
Amp-Out caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1
Amp-Out vals: [0x00 0x00]
Pincap 0x0001001c: OUT HP EAPD Detect
EAPD 0x2: EAPD
Pin Default 0x90170110: [Fixed] Speaker at Int N/A
Conn = Analog, Color = Unknown
DefAssociation = 0x1, Sequence = 0x0
Misc = NO_PRESENCE
Pin-ctls: 0x40: OUT
Unsolicited: tag=00, enabled=0
Power states: D0 D1 D2 D3 EPSS
Power: setting=D0, actual=D0
Connection: 3
0x02 0x03* 0x06
Node 0x18 [Pin Complex] wcaps 0x400481: Stereo
Pincap 0x00000024: IN Detect
Pin Default 0x411111f0: [N/A] Speaker at Ext Rear
Conn = 1/8, Color = Black
DefAssociation = 0xf, Sequence = 0x0
Misc = NO_PRESENCE
Pin-ctls: 0x00:
Unsolicited: tag=00, enabled=0
Power states: D0 D1 D2 D3 EPSS
Power: setting=D0, actual=D0
Node 0x19 [Pin Complex] wcaps 0x40048b: Stereo Amp-In
Control: name="Mic Boost Volume", index=0, device=0
ControlAmp: chs=3, dir=In, idx=0, ofs=0
Amp-In caps: ofs=0x00, nsteps=0x03, stepsize=0x27, mute=0
Amp-In vals: [0x01 0x01]
Pincap 0x00003724: IN Detect
Vref caps: HIZ 50 GRD 80 100
Pin Default 0x03a19030: [Jack] Mic at Ext Left
Conn = 1/8, Color = Pink
DefAssociation = 0x3, Sequence = 0x0
Pin-ctls: 0x24: IN VREF_80
Unsolicited: tag=02, enabled=1
Power states: D0 D1 D2 D3 EPSS
Power: setting=D0, actual=D0
Node 0x1a [Pin Complex] wcaps 0x40048b: Stereo Amp-In
Amp-In caps: ofs=0x00, nsteps=0x03, stepsize=0x27, mute=0
Amp-In vals: [0x00 0x00]
Pincap 0x00003724: IN Detect
Vref caps: HIZ 50 GRD 80 100
Pin Default 0x411111f0: [N/A] Speaker at Ext Rear
Conn = 1/8, Color = Black
DefAssociation = 0xf, Sequence = 0x0
Misc = NO_PRESENCE
Pin-ctls: 0x00: VREF_HIZ
Unsolicited: tag=00, enabled=0
Power states: D0 D1 D2 D3 EPSS
Power: setting=D0, actual=D0
Node 0x1b [Pin Complex] wcaps 0x40058f: Stereo Amp-In Amp-Out
Amp-In caps: ofs=0x00, nsteps=0x03, stepsize=0x27, mute=0
Amp-In vals: [0x00 0x00]
Amp-Out caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1
Amp-Out vals: [0x80 0x80]
Pincap 0x00013734: IN OUT EAPD Detect
Vref caps: HIZ 50 GRD 80 100
EAPD 0x2: EAPD
Pin Default 0x411111f0: [N/A] Speaker at Ext Rear
Conn = 1/8, Color = Black
DefAssociation = 0xf, Sequence = 0x0
Misc = NO_PRESENCE
Pin-ctls: 0x20: IN VREF_HIZ
Unsolicited: tag=00, enabled=0
Power states: D0 D1 D2 D3 EPSS
Power: setting=D0, actual=D0
Connection: 2
0x02* 0x03
Node 0x1c [Vendor Defined Widget] wcaps 0xf00000: Mono
Node 0x1d [Pin Complex] wcaps 0x400400: Mono
Pincap 0x00000020: IN
Pin Default 0x40493b6d: [N/A] SPDIF Out at Ext N/A
Conn = XLR, Color = Blue
DefAssociation = 0x6, Sequence = 0xd
Misc = NO_PRESENCE
Pin-ctls: 0x20: IN
Power states: D0 D1 D2 D3 EPSS
Power: setting=D0, actual=D0
Node 0x1e [Pin Complex] wcaps 0x400581: Stereo
Pincap 0x00000014: OUT Detect
Pin Default 0x411111f0: [N/A] Speaker at Ext Rear
Conn = 1/8, Color = Black
DefAssociation = 0xf, Sequence = 0x0
Misc = NO_PRESENCE
Pin-ctls: 0x40: OUT
Unsolicited: tag=00, enabled=0
Power states: D0 D1 D2 D3 EPSS
Power: setting=D0, actual=D0
Connection: 1
0x06
Node 0x1f [Pin Complex] wcaps 0x400681: Stereo Digital
Pincap 0x00000024: IN Detect
Pin Default 0x411111f0: [N/A] Speaker at Ext Rear
Conn = 1/8, Color = Black
DefAssociation = 0xf, Sequence = 0x0
Misc = NO_PRESENCE
Pin-ctls: 0x20: IN
Unsolicited: tag=00, enabled=0
Power states: D0 D1 D2 D3 EPSS
Power: setting=D0, actual=D0
Node 0x20 [Vendor Defined Widget] wcaps 0xf00040: Mono
Processing caps: benign=0, ncoeff=130
Node 0x21 [Pin Complex] wcaps 0x40058d: Stereo Amp-Out
Control: name="Headphone Playback Switch", index=0, device=0
ControlAmp: chs=3, dir=Out, idx=0, ofs=0
Amp-Out caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1
Amp-Out vals: [0x00 0x00]
Pincap 0x0001001c: OUT HP EAPD Detect
EAPD 0x2: EAPD
Pin Default 0x03214020: [Jack] HP Out at Ext Left
Conn = 1/8, Color = Green
DefAssociation = 0x2, Sequence = 0x0
Pin-ctls: 0xc0: OUT HP
Unsolicited: tag=01, enabled=1
Power states: D0 D1 D2 D3 EPSS
Power: setting=D0, actual=D0
Connection: 2
0x02* 0x03
Node 0x22 [Audio Selector] wcaps 0x300101: Stereo
Connection: 4
0x19* 0x1a 0x1b 0x12
Node 0x23 [Audio Selector] wcaps 0x300101: Stereo
Connection: 4
0x19* 0x1a 0x1b 0x13
Node 0x24 [Audio Selector] wcaps 0x300101: Stereo
Connection: 3
0x12* 0x13 0x18
Node 0x25 [Vendor Defined Widget] wcaps 0xf00000: Mono
spci -k | grep -A 3 Audio
01:00.1 Audio device: NVIDIA Corporation Device 2f80 (rev a1)
Subsystem: NVIDIA Corporation Device 0000
Kernel driver in use: snd_hda_intel
Kernel modules: snd_hda_intel
--
6a:00.1 Audio device: Advanced Micro Devices, Inc. [AMD/ATI] Rembrandt Radeon High Definition Audio Controller
Subsystem: Micro-Star International Co., Ltd. [MSI] Rembrandt Radeon High Definition Audio Controller
Kernel driver in use: snd_hda_intel
Kernel modules: snd_hda_intel
6a:00.2 Encryption controller: Advanced Micro Devices, Inc. [AMD] Family 19h PSP/CCP
--
6a:00.5 Multimedia controller: Advanced Micro Devices, Inc. [AMD] ACP/ACP3X/ACP6x Audio Coprocessor (rev 62)
Subsystem: Micro-Star International Co., Ltd. [MSI] ACP/ACP3X/ACP6x Audio Coprocessor
Kernel driver in use: snd_rpl_pci_acp6x
Kernel modules: snd_pci_acp3x, snd_rn_pci_acp3x, snd_pci_acp5x, snd_pci_acp6x, snd_acp_pci, snd_rpl_pci_acp6x, snd_pci_ps, snd_sof_amd_renoir, snd_sof_amd_rembrandt, snd_sof_amd_vangogh, snd_sof_amd_acp63, snd_sof_amd_acp70
6a:00.6 Audio device: Advanced Micro Devices, Inc. [AMD] Family 17h/19h HD Audio Controller
DeviceName: Realtek ALC245
Subsystem: Micro-Star International Co., Ltd. [MSI] Family 17h/19h HD Audio Controller
Kernel driver in use: snd_hda_intel
Kernel modules: snd_hda_intel
6b:00.0 USB controller: Advanced Micro Devices, Inc. [AMD] Device 15b8
lsmod | grep -E "snd_soc|acp|dmic"
snd_sof_amd_acp70 16384 0
snd_sof_amd_acp63 16384 0
snd_sof_amd_acp 61440 5 snd_sof_amd_acp70,snd_sof_amd_rembrandt,snd_sof_amd_vangogh,snd_sof_amd_acp63,snd_sof_amd_renoir
snd_sof_pci 24576 5 snd_sof_amd_acp70,snd_sof_amd_rembrandt,snd_sof_amd_vangogh,snd_sof_amd_acp63,snd_sof_amd_renoir
snd_sof_xtensa_dsp 12288 1 snd_sof_amd_acp
snd_sof 393216 2 snd_sof_amd_acp,snd_sof_pci
snd_soc_acpi_amd_match 8192 2 snd_sof_amd_acp63,snd_pci_ps
snd_amd_sdw_acpi 16384 2 snd_sof_amd_acp,snd_pci_ps
soundwire_amd 45056 2 snd_sof_amd_acp,snd_pci_ps
snd_soc_sdca 12288 1 soundwire_bus
snd_soc_core 425984 2 snd_sof,soundwire_amd
snd_compress 36864 1 snd_soc_core
snd_intel_sdw_acpi 16384 1 snd_intel_dspcfg
ac97_bus 12288 1 snd_soc_core
snd_pcm_dmaengine 16384 1 snd_soc_core
snd_rpl_pci_acp6x 16384 0
snd_acp_pci 12288 0
snd_acp_legacy_common 16384 1 snd_acp_pci
snd_pci_acp6x 16384 0
snd_pcm 192512 14 snd_sof_amd_acp,snd_hda_codec_hdmi,snd_pci_acp6x,snd_hda_intel,snd_hda_codec,snd_sof,snd_compress,snd_soc_core,snd_sof_utils,soundwire_amd,snd_hda_core,snd_pci_ps,snd_pcm_dmaengine
snd_pci_acp5x 16384 0
snd_rn_pci_acp3x 16384 0
snd_acp_config 20480 10 snd_rn_pci_acp3x,snd_sof_amd_acp70,snd_pci_acp6x,snd_pci_acp5x,snd_sof_amd_rembrandt,snd_sof_amd_vangogh,snd_sof_amd_acp63,snd_acp_pci,snd_pci_ps,snd_sof_amd_renoir
snd 143360 25 snd_hda_codec_generic,snd_seq,snd_seq_device,snd_hda_codec_hdmi,snd_hwdep,snd_hda_intel,snd_hda_codec,snd_hda_codec_realtek,snd_sof,snd_timer,snd_compress,snd_soc_core,snd_pcm,snd_rawmidi
snd_soc_acpi 16384 3 snd_sof_amd_acp,snd_acp_config,snd_pci_ps
snd_pci_acp3x 16384 0
i2c_hid_acpi 12288 0
i2c_hid 40960 1 i2c_hid_acpi
cat /proc/asound/cards
0 [NVidia ]: HDA-Intel - HDA NVidia
HDA NVidia at 0xbc080000 irq 138
1 [Generic ]: HDA-Intel - HD-Audio Generic
HD-Audio Generic at 0xbc9c8000 irq 139
2 [Generic_1 ]: HDA-Intel - HD-Audio Generic
HD-Audio Generic at 0xbc9c0000 irq 140
What I’ve Tried:
Using hdajackretask from alsa-tools-gui to ‘override’ 0x13 and 0x18 to ‘Internal microphone’ did not help. Internal microphone - Family 17h/19h HD Audio Controller appeared in settings but the loudness bar did not move while I was yelling.
Similar issue has been reported here, but it hasn’t been resolved and mentioned link to askubuntu.com is dead:
In-built microphone not detected on MSI Laptop
Thanks for your kind asistance.
